BIPV Structure — Integration Systems

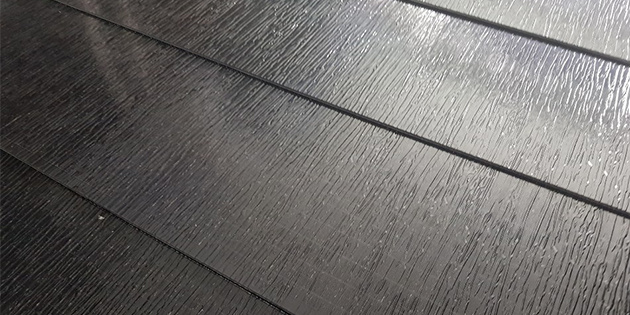

Roofing system integrating waterproof structure and photovoltaic modules.

• ✔Technology integrating waterproof structure and photovoltaic module
• ✔Prevention of efficiency degradation through natural ventilation
• ✔Galvanized sheet metal folding technology + Rainy Module = Facilitated installation
• ✔BIPV Roofing system installable without separate support by integrating existing roofing materials

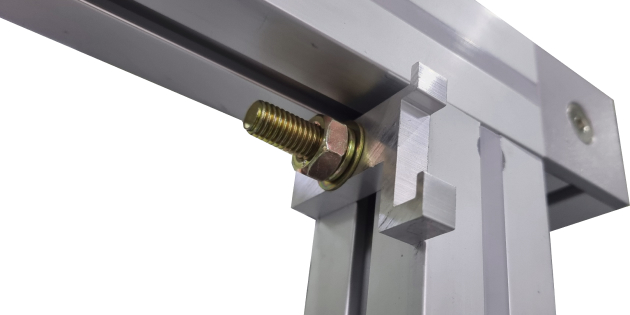

Snap frame connection technology on steel structure for horizontal or vertical installation.

• ✔Technology connecting snap frame to steel truss structure of the wall
• ✔Maximizes constructability with manufacturing of various sized modules
• ✔Easy installation of PV panels on the wall thanks to snap frame technology
• ✔Spacing tape and additional stud structure not required
• ✔Reduced construction time

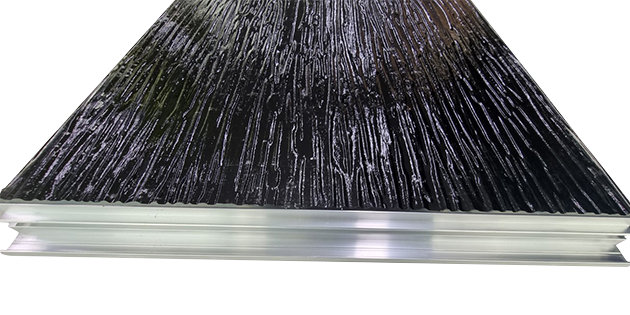

BIPV panel fixed by vertical snap action and horizontal sliding.

• ✔BIPV panel is fixed by snap action (up/down) and sliding (left/right)
• ✔Grid-type steel structures and spacing tape work omitted, facilitating exterior wall construction
• ✔Custom installation possible according to architectural design
• ✔Built in one go by dry method on aluminum fixing support
• ✔Reduced construction time and costs

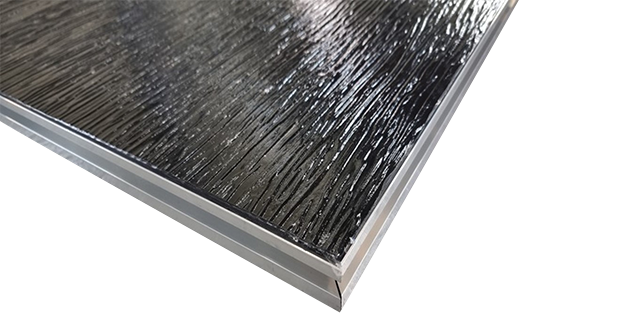

Easy connection of photovoltaic panel frame with wall stud frame.

• ✔Easy connection of PV panel frame with wall stud frame
• ✔Maximizes constructability with manufacturing of various sized modules
• ✔Safe and easy installation
• ✔Spacing tape and additional stud structure not required
• ✔Reduced construction time

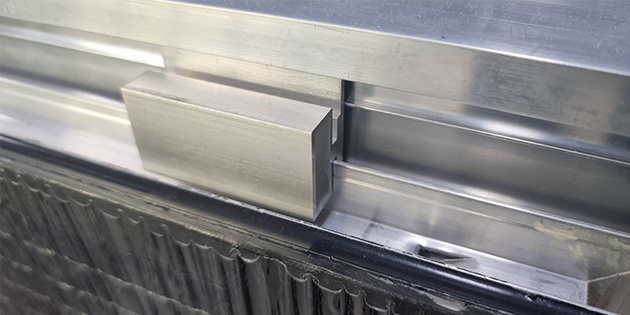

Connection of clip-type frame with C-type channel structure of the wall.

• ✔Easy connection of clip-type frame of PV panel with C-type channel structure of the wall
• ✔Maximizes constructability with manufacturing of various sized modules
• ✔Connection of Z-bar frame with C-type wall truss frame unit in one go
• ✔Spacing tape and additional stud structure not required
• ✔BIPV wall truss system with short construction time, economic feasibility, impact resistance, ease of construction

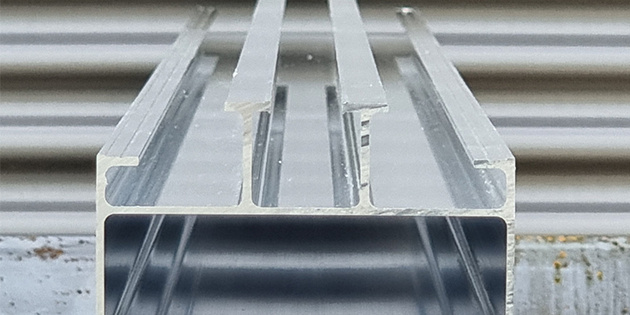

Waterproof structure system connecting PV panel frame with integrated roof stud frame.

• ✔Waterproof structure system easily connecting existing PV panel frame with integrated roof stud frame
• ✔Maximizes constructability with manufacturing of various sized modules
• ✔Waterproofing function using roof-integrated stud frame and battens
• ✔Connection of aluminum frame of PV panel with roof-type stud frame in one go
• ✔Additional steel structure not required and reduced construction time
