BIPV Building Integrated Photovoltaics
PV modules and systems integrated into the building envelope: curtain walls, roofs, solar tiles and flexible CIGS/Mono solutions.
Contact usOverview
The BIPV range covers modules integrated into walls (Solwall, Hanwall, CIGS Power Glass), roofs (Soltile, Hantile, Possolar), as well as flexible modules (Miasolé CIGS, Mono Flex) for aesthetic, durable and high-performance integration.
- Architectural aesthetics
- Clean energy production
- Durability & innovation
Key Benefits

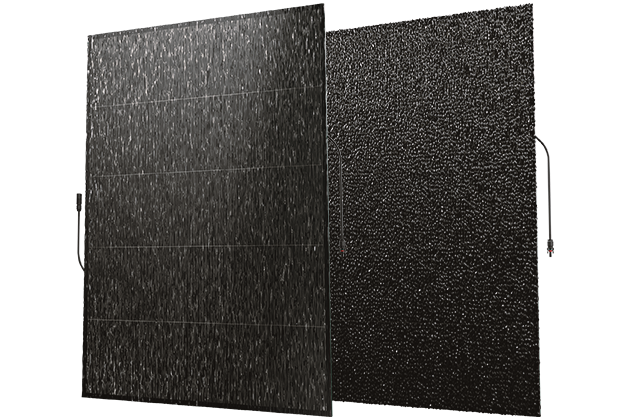

Solwall
Facade-integrated panels for an active, aesthetic and high-performance envelope.
- Wall-integrated photovoltaic module
- Custom manufacturing to plan
- Surface patterns reducing glare in urban areas
- Easy installation, durability, simple maintenance
| Power | 328 W |
| Technology | Silicium |
| Efficiency | 19,4% |
| Dimensions | 1612 × 1050 × 6 mm |
| Weight | 28 kg |

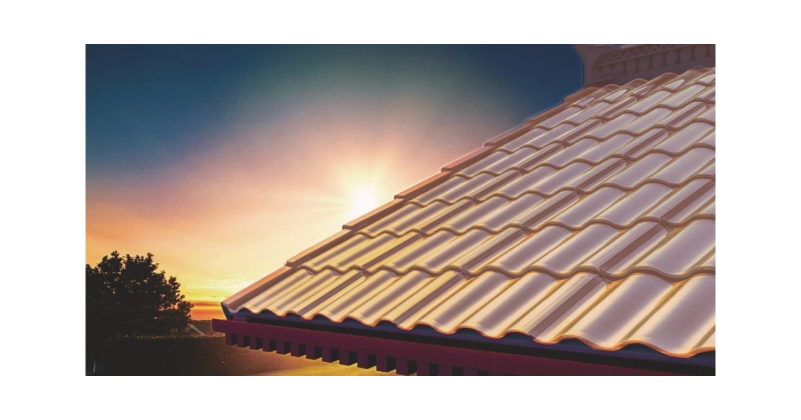

Soltile (Rainy / Hanok / Curved variants)
Integrated solar tile for roofs, with aesthetic variants adapted to architectural styles.
- Roof-integrated photovoltaic module
- Roof finish without additional structure
- Enhanced performance through surface pattern diffusion
- Easy installation, durability, simple maintenance
| Power | 100 W |
| Technology | Silicium |
| Efficiency | 16% |
| Dimensions | 1400 × 400 × 8 mm |
| Weight | 9 kg |

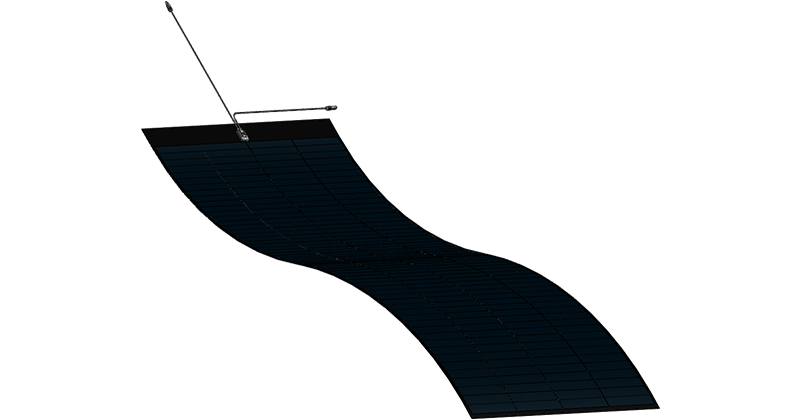

Miasolé (Flexible CIGS)
Ultra-lightweight flexible CIGS module for curved surfaces and discrete integration.
- Cell efficiency up to 16%
- Installation weight <2.4kg/m²
- No structure required for installation
- High wind and impact resistance
| Power | 125 W |
| Technology | CIGS |
| Efficiency | up to 16% |
| Dimensions | 2585 × 348 × 2.5 mm |
| Weight | 1.9 kg |
Hanwall (curtain wall)
Active and aesthetic facade, compatible with curtain walls with refined finishes.
- Curtain wall facade integration
- Refined aesthetics, color palette
- High wind resistance, durability
| Power | 120 W |
| Technology | CIGS |
| Efficiency | — |
| Dimensions | 1192 (+/‑1) × 792 (+/‑1) × 15 (±0,2) mm |
| Weight | 33 kg |

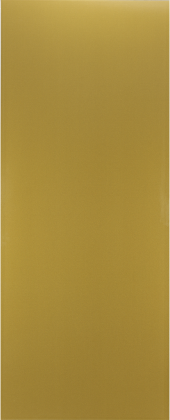

CIGS Power Glass
CIGS photovoltaic glass, adjustable transparency for facades and canopies.
- Low thermal coefficient, advantage in hot/humid climate
- High mechanical load (3600 Pa), fire Class C
- Adjustable transparency 0–60%, thermal/acoustic insulation
| Power | 145 W |
| Technology | CIGS |
| Efficiency | — |
| Dimensions | 1587 × 664 × 5.8 mm |
| Weight | 17 kg |

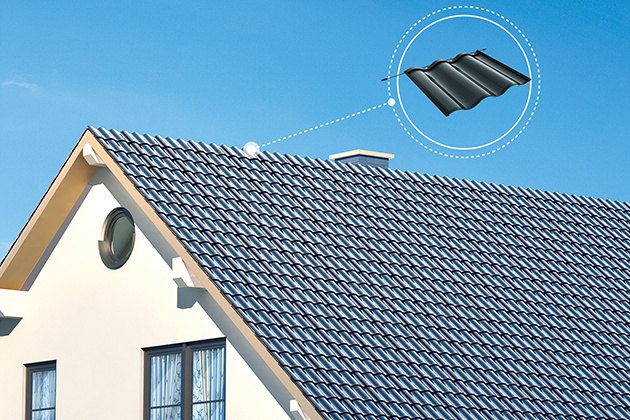

Hantile (tile)
CIGS PV tile for roofs, combining aesthetics and performance.
- Integrated photovoltaic tile
- Resistant CIGS modules, anti-glare
- Simplified installation and maintenance
| Power | 30 W |
| Technology | CIGS |
| Efficiency | — |
| Dimensions | 725 × 500 × 41 mm |
| Weight | 9.5 kg |

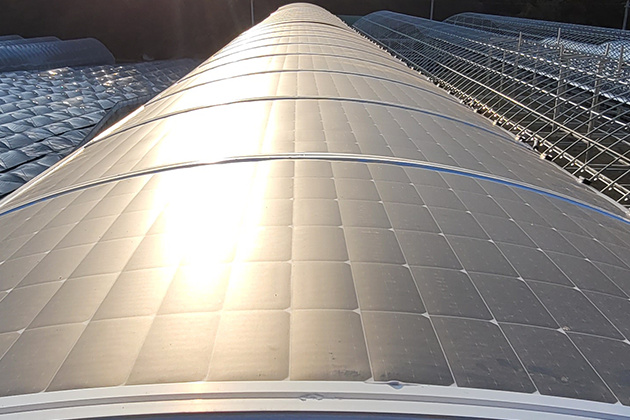

Mono Flex Module
Ultra-lightweight seamless monocrystalline flexible module for harmonious building integration.
- Seamless 2D encapsulation, low degradation
- Lead-free MWT module, eco-friendly
- Ultra-thin silicon wafer, min. bending radius 0.25m
- Lightweight and thin design, harmonious integration
- High wind resistance, durability, easy installation
| Power | 375 W |
| Efficiency | 21.8% |
| Dimensions | 1800 × 1040 × 2.5 mm |
| Weight | 4.7 kg |
| Cells | 126 Mono Half cell |
| Frame | none |
| Back material | Back Sheet (White) |

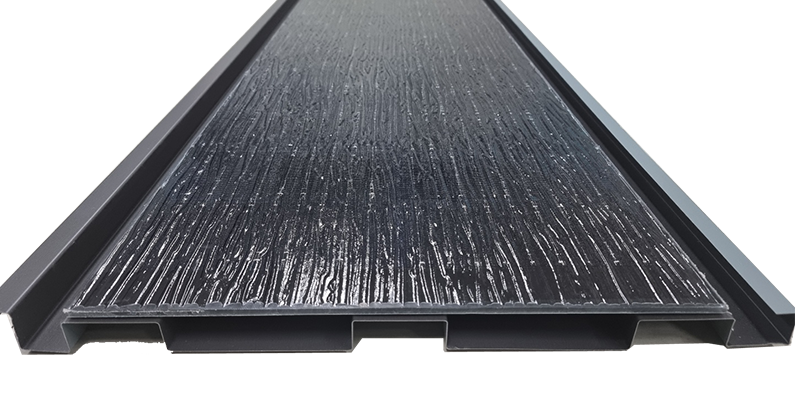

Possolar
Integrated photovoltaic tile, roof finish without additional structure.
- Integrated roof finish function, no additional structure
- Reduced construction time (one-time installation)
- Distinguished architectural aesthetics
- Harmonious building integration
| Power | 100 W |
| Efficiency | 19.4% |
| Dimensions | 1646 × 350 × 6 mm |
| Weight | 9 kg |

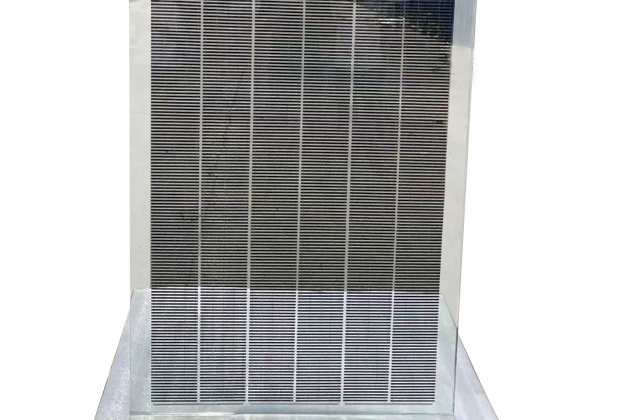

Transparency Solar Window
Aesthetic transparent solar window with lighting and blind function.
- Custom design manufacturing
- Integrated natural lighting and blind function
- Highly aesthetic solar window
- High wind resistance and durability
| Power | 125 W |
| Dimensions | 2400 × 635 × 11 mm |
| Weight | 40 kg |
| Cells | M2-5BB/Cell*s 960pcs |
| Front glass | tempered ultra-clear glass |
| Back glass | tempered clear glossy glass |

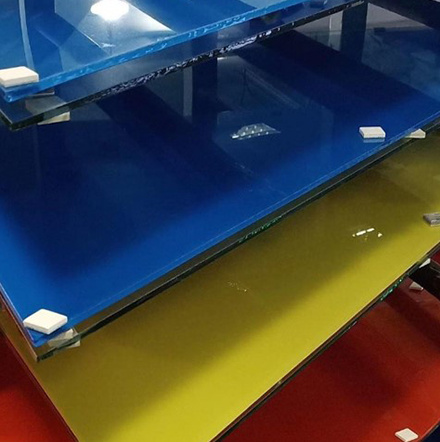

Diverse BIPV Module (Designed & Colored Glass Module)
Custom BIPV modules with colored glass and bespoke design for unique architectural integration.
- Customizable design and colors
- High-quality colored glass
- Bespoke architectural integration
- Premium aesthetics for exceptional projects
*Contact us for detailed specifications according to your project.
